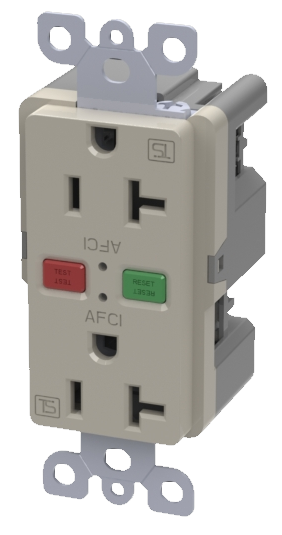

Receptacle Outlet AFCI - Branch Circuit/Feeder Type

True-Safe's AFCI technology can be applied into combination type receptacle outlets which affords circuit protection against low and high current arcs. Low current arcs are those that occur along a current-carrying conductor such as a loose terminal connection, whereas, high current arcs are those that occur between two current-carrying conductors which sometimes are mistakenly thought of as a short circuit because of the intensity of the arcs. These receptacle outlets are classified under UL Standard 1699 as Branch circuit/Feeder type since they provide complete circuit protection from the first outlet to downstream outlets and connections . These products are typically offered with dual rating of 15A and 20A at 120V system voltage.

General Specifications:
Current Ratings Available: 15A/20A - Duplex, Dual-Rated
System Voltage: 120VAC +/-30%
Frequency: 60 Hz
Number of phases: 1
Protection: Arc Fault, Overload, Short Circuit, Surge
Fault Detection Method: Digital
Applications: Branch/Feeder and outlet circuit protection
Tamper Protection: Child-proof outlet covers, tamper-proof fasteners
Material: PC/ABS Housing, Nylon for Internal Plastics
Switching Mechanism: Solenoid-Operated or Manual
Tripping Mechanism: Solenoid-Operated
Applicable Standard/s: UL 1699, UL 498
Temperature Range: -35C to 65C
Surge Current Rating: 3KA@ 6 KV (+/-90 deg)
Dielectric Withstand Rating: 1500V/1 sec
